Single-serve coffee pods (such as Keurig's K-Cups) have transformed the way we drink coffee, and K Cup filling machines are creating these quick brews. Whether you're a coffee roaster trying to grow into single-serve pods or a business owner intrigued about the process, this article will teach you everything needed to know about K Cup filling machines.
What Is a K Cup Filling Machine?
A K Cup filling machine is a specialized in used to fill and seal K-Cups, the little capsule found in Keurig-style single-serve coffee brewers. Simply, this machine automates the process of loading ground coffee (or other beverage mixes such as chocolate powder, cocoa powder) into empty K-Cup pods and sealing them with foil lids. The result is a ready-to-brew coffee capsule, like those seen on the shelf of supermarkets.
How Does a K Cup Filling Machine Work?
K Cup filling machines may appear sophisticated, yet they operate in a simple step-by-step manner. While individual versions may differ somewhat, most follow these general procedures to convert empty cups into finished, sealed coffee pods:

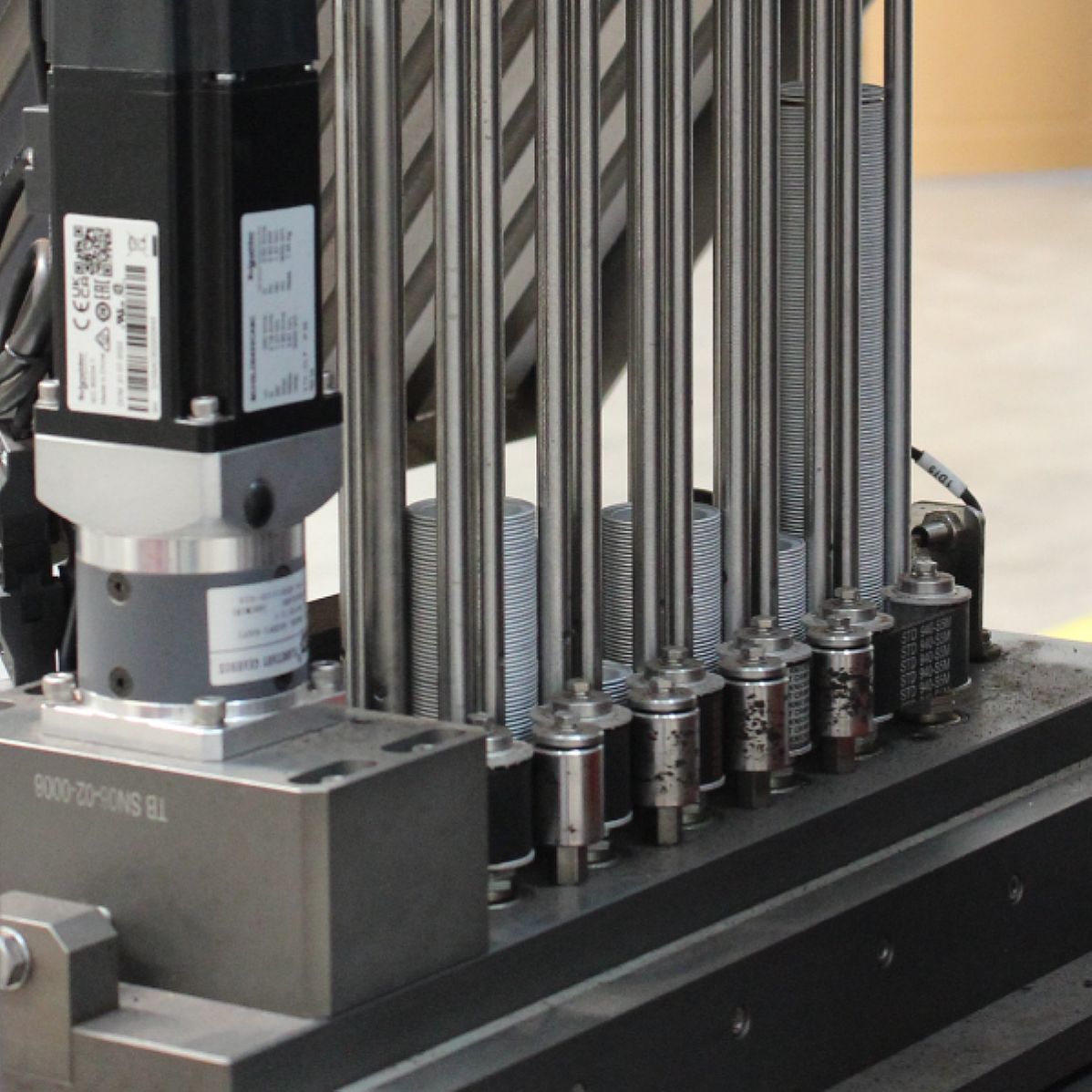

- Cup Drop: Load empty K-Cup pods into machine. High-end machines have automatic feeders that line up the cups or long tube for stacking kcups.
- Filling: The machine precisely administers a volumetric amount of ground coffee into each cup. This dosing method is regulated so that each pod receives the same amount of coffee (ensuring a consistent taste for customers). Some machines would use a shaking function while the coffee filled the past 20 years.
- Tamping: Certain versions include a tamping station that gently compresses the coffee granule in the cup. Tamping generates a homogeneous pack of coffee, which can improve brewing quality. Not all K Cup filling machines tamp, but some do to guarantee that each pod extracts properly when brewed.
- Sealing: After filling (and tamping, if applicable), the K-Cup's top is covered with a lid. Traditionally, a roll of foil lids is utilized. Each filled cup is fitted with a foil cover, which is then sealed snugly around the rim using heat or pressure. This provides an airtight seal, preserving freshness and scent. In more modern machines, this stage may involve a vacuum or nitrogen flush immediately before sealing to remove oxygen, allowing the coffee to stay fresher for longer shelf life.
- Ejection/Dispensing: Once sealed, the finished K-Cup pods are ejected from the machine or transferred to the next stage (such as packing). In an automated line, the machine may place the sealed pods on a conveyor or in a bin, ready for packaging into boxes.
Throughout the process, sensors keep everything running properly. For example, a functional machine will incorporate a sensor that detects when a cup is missing from a slot and skips filling to avoid spilling coffee. The entire operation is intended to be quick and efficient, frequently lasting only one second per pod. That means a fully automatic K Cup filling machine can generate a high volume of capsules per hour, greatly amazing cup out.
Types of K Cup Filling Machines：
K Cup filling machines are not all the same; several designs are available to meet a variety of production needs. There are three basic types: automated inline machines, automatic rotary machines, and semi-automatic (or tabletop) machines. Each type has its own benefits and optimal use case:
1.Automated Inline Machines
An automatic inline K Cup filling machine keeps the production steps in a straight line. Consider a manufacturing line with cups moving in a linear pattern through each station (filling, sealing, etc.). These machines use conveyors or tracks to transport the cups from one station to the next in order. Inline machines are popular due to their simple design, which can sometimes be configured with numerous lanes side by side to improve production.
Advantages:
Inline systems are generally simple to expand; you can frequently add another lane or run many lines concurrently to increase production. They are ideal for medium to high output needs. Their linear layout also makes it easy to see each stage of the process, which is useful for monitoring and maintenance.
2.Automated Rotary Machines
An automatic rotary K Cup filling machine employs a revolving platform (similar to a carousel) to transfer cups through the filling and sealing process. The machine's turntable is spherical and contains cup holes. As it revolves, each cup passes under the filling station, then the sealing station, and so on, until it reaches a full circle and removes the finished pod. Rotary machines are noted for their speed and space efficiency, as the round form packs the stations close together.
Advantages:
Rotary K Cup machines can attain faster rates than inline machines due to simultaneous operations at different positions on the wheel. They are also space-efficient, which is ideal for factories or workshops with limited floor space. These machines are great for high-volume manufacturing; some huge rotational systems can create thousands of K-Cups per hour, making them appropriate for major coffee pod makers.
3.Semi-Automatic/Tabletop Machines
Semi-automatic K Cup filling machines (typically tiny or tabletop devices) are an affordable solution for small enterprises, startups, and specialty coffee roasters. These machines often require more human intervention; for example, an operator may manually pour empty cups in the machine or attach lids, and the machine will handle the filling and basic sealing. Some semi-automatic coffee machines pour the coffee and request the user to add a foil top and begin sealing for each pod.
Advantages:
The primary advantage is cost and size. Semi-automatic machines are less expensive and much smaller than fully automated inline or rotary systems. They're ideal for organizations that don't need to generate large quantities of pods at once. If you're a local coffee business looking to sell your own small batch of K-Cups, a desktop machine could allow you to create a few hundred pods per day without spending six figures on an industrial equipment. They are also easier to use and maintain for someone who is new to packaging machinery.
Comparing the types:
In short, if you need large volume and speed, an automatic rotary or a multi-lane inline machine is likely the best choice. If your production needs are moderate, a single-lane inline machine might handle the job efficiently. If you're just starting out or have low-volume, on-demand production, a semi-automatic (manual assist) machine can be a good option. Each variety appeals to a different size of business, from worldwide coffee capsule producers to boutique roasters.
Benefits of Using a K Cup Filling Machine：
Dramatically Increased Efficiency:Filling machines may produce more coffee pods per hour than human processes, leading to significant efficiency gains. What would normally take a person several hours (and a lot of laborious effort) can be completed in a fraction of the time. This implies you can fulfill high demand and even increase output without having to assemble an army of personnel.
Consistency and Quality Control: Every single pod that comes off a good machine has the same amount of coffee, packed the same way, and sealed with the same pressure and heat. This consistency ensures that customers get the same taste and brew experience from each pod. It also reduces the possibility of human error, such as forgetting to put a filter or putting the wrong amount of coffee. Many machines have built-in checks (such as weight sensors) to keep each fill precise.
Labor and Cost Savings: While purchasing a K Cup filling machine is an upfront investment, it can save money in the long run. Automating the filling process means you don’t need as many staff doing manual filling and packaging, which lowers labor costs. Plus, machines don’t get tired or take breaks, so the workflow stays steady and productive. Over time, the increased output and reduced labor can offer a strong return on investment.
Improved Cleanliness and Shelf Life: The sealing procedure on these machines usually results in an airtight seal, which helps to retain the freshness of the coffee. Some machines also flush the cup with nitrogen before sealing, removing air that can cause coffee to get stale. The end result is a longer shelf life for your product, with pods that remain fresh and aromatic for months on a store shelf or in someone's cupboard. Furthermore, the automated procedure is generally more sanitary than hand-filling (there is less direct contact with the coffee), which is critical for food safety.
Meeting Consumer Demand: Single-serve coffee continues to be quite popular. Using a filling machine, even small coffee manufacturers can enter the market with their own K-Cups and satisfy customers who enjoy the convenience of the format. It creates a profitable channel, as K-Cup pods frequently sell at a higher price per cup than regular bagged coffee.
Cost and Budget Considerations
- Entry-Level/Semi-Automatic Machines (including benchtop machines) cost $5,000 to $10,000.
- A medium-capacity, fully automatic inline machine can cost $10,000 to $50,000 (more if new).
- High-end industrial machines range in price from $50,000 to $100,000 or more.
By now, I believe you have a more in-depth understanding of K-cup filling machines, EXPAK has many years of deep experience in the coffee filling industry, we welcome you to contact us at any time and look forward to more cooperation.
