As an important part of automated packaging equipment, the horizontal carton Erector provides an efficient, accurate and flexible solution for any industries, helping companies improve packaging efficiency, ensure product quality and reduce operating costs.
1. Working Principle of Horizontal Carton Erector
The horizontal carton erector adopts advanced mechanical design and intelligent control system to achieve fully automated operation from carton feed, carton erecting, forming to bottom folding and sealing. Its core working principle is as follows:
- Carton supply: The equipment automatically sucks the flattened carton from the carton magazine and transports it to the carton erecting station.
- Carton erecting and forming: Through the cooperation of the suction cup and the robotic arm, the bottom and side of the carton are erected at the same time and formed into a rectangular shape.
- Bottom folding: Using advanced folding mechanism, the four folds at the bottom of the carton are folded in sequence and pressed and fixed.
- Bottom sealing: According to the needs, tape bottom sealing or hot melt glue bottom sealing can be selected to ensure that the bottom of the carton is firmly sealed.
- Finished cartons out: The carton that has completed erecting and bottom sealing is automatically transported to the designated location, waiting for the rear packaging process.

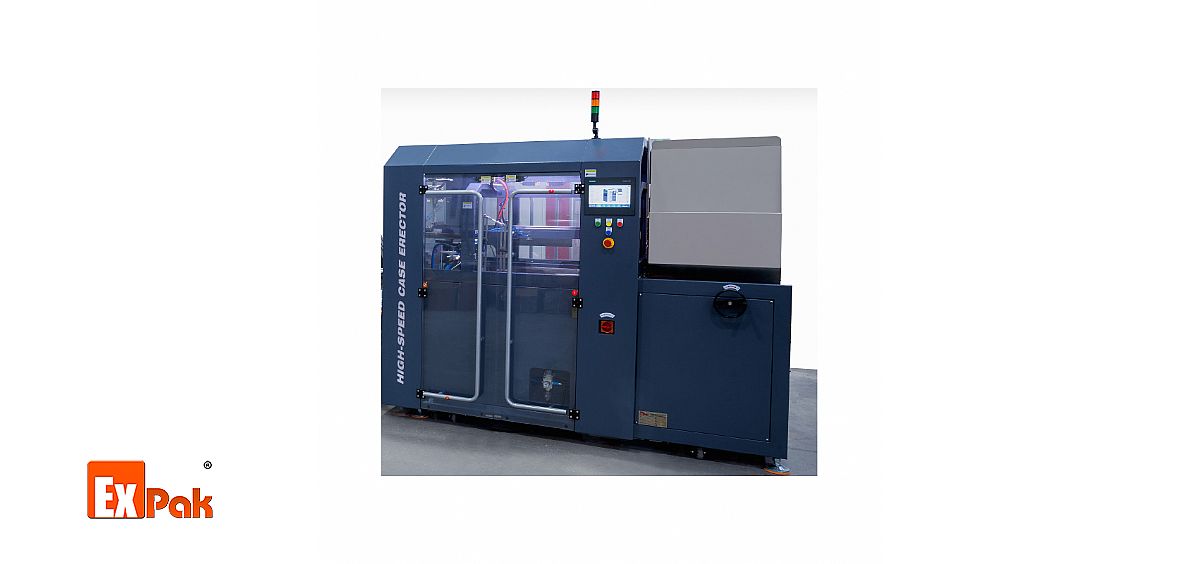

2. Technical Features of H30 Horizontal Carton Erector
- High speed and high efficiency: Using servo motor drive and high-precision transmission system to achieve an erecting speed of 50 cartons per minute, greatly improving packaging efficiency.
- Accurate and stable: Equipped with high-precision sensors and intelligent control systems to ensure that each carton can be accurately erected, formed and sealed to ensure packaging quality.
- Strong adaptability: It can handle cartons of various specifications, and only simple adjustments can meet the packaging needs of different products.

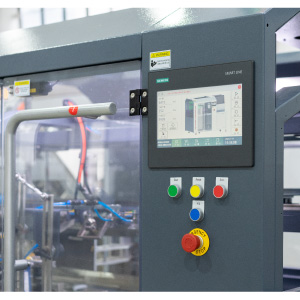

- Easy operation: Using PLC and Human Machine Interface (HMI) control system, the operation interface is friendly and easy to learn and operate.
- Safe and reliable: Equipped with safety protection devices to effectively ensure the safety of operators.
3. Core Components of Horizontal Carton Erector
- SEW motor: Reliable component applied for the equipment to ensure high-speed and smooth operation.
- High-precision sensor: Real-time monitoring of carton position and status to ensure accurate carton opening and bottom sealing.
- Intelligent control system: Adopts PLC controller to realize automatic control and fault diagnosis of equipment.
- Vacuum suction cup: Used to grip and hold the carton to ensure that the carton remains stable during the unpacking process.

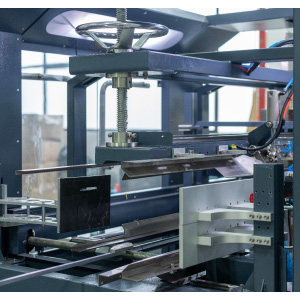

- Folding mechanism: Adopts advanced mechanical structure to achieve accurate folding and pressing of the bottom fold of the carton.
| Model |
H30 |
| Seal Type |
Hot melt gule/Tape |
| Carton Opening Speed |
25 ctns/min |
| Carton Size |
L190-470×W150-350×H120-400mm |
| Power Supply |
220V 50-60Hz 3 Phase |
| Power |
3000W |
| Carton Storage Quantity |
100pcs |
| Air Consumption |
420 L/min |
| Air pressure |
0.6 MPa |
| Machine Size |
L 2390xW 1390xH 2120mm |
| Machine Weight |
1200Kg |
