Key Features
- High-Speed Operation: Capable of performing up to 12 cartons per minute, this machine ensures high efficiency and productivity for large-scale operations. As FYI, 10 carton per min (600 cartons/hour upon 100ct)
- Accurate Count: With highly precious sensor counting system, as well as servo motor control special convey belt keep numbers go correct in every single carton.
- Flexible Change: It is flexible to be any mixed formula by operator to set at control panel. Carton erector and sealer system are adjustable for different sizes of carton, easy and quick change.
Detailed information of this model

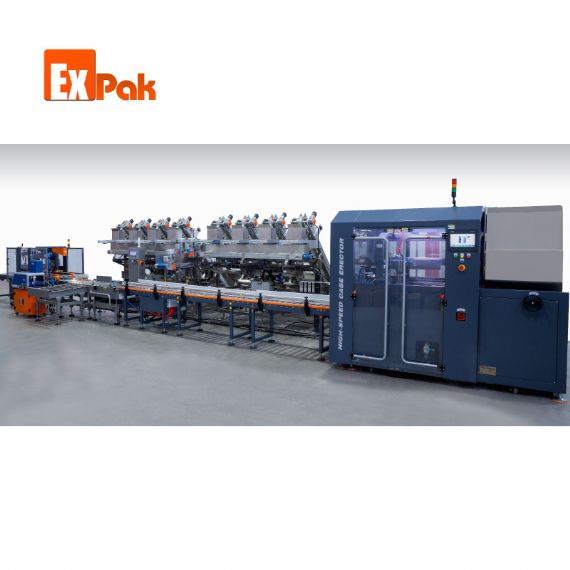

It is fully automatic machinery equipment for packing variety flavored or different blends kcups. Consider different sizes of carton and material of this type of carton. We have chosen the horizontal carton erector system to achieve higher capacity and more stable operation. Counting system is important point in this system, counter sensor type, location, conveying system design, drive method are served for "accurate”. After cups are loaded into carton, we also have a shake system to keep cups are average lay down the carton so as to succeed to seal carton. Check weigher with dumper is integrated in this system to keep cup numbers are correct with every carton.
Main Working Station
1 Carton Erector System
Horizontal erecting is more method than vertical way to open carton. It can get faster speed while keep stable operation, especially in terms of edge calibration which could obtain great visual, thus improving product competitiveness. With much experience, we offer the options both tape seal system and hot melt glue seal system.

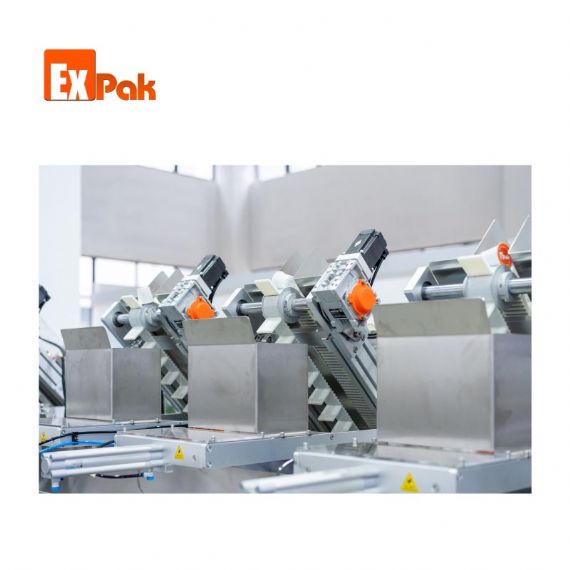

2 Elevator with counting system
Correct numbers in per carton is extremely crucial. Which every detail is revolved around "accuracy”. No matter what 48ct, 72ct, or 120ct. they are must with correct numbers inside. Precious counter sensor, customized conveyor system to lift cups one by one. conveyor controlled by servo motor. We can ensure count is accurate while run with a fast speed. Ground hopper can contain over 1000 cups so reduce manual reload cups, improve efficiency.
3 Check Weigher with dumper
This system integrates weighing station to make sure every carton with right number cups inside, it is backup when something goes wrong. Over or less the set weight will be refused to next seal station but will dump to platform that staff can address.
4 Carton Seal

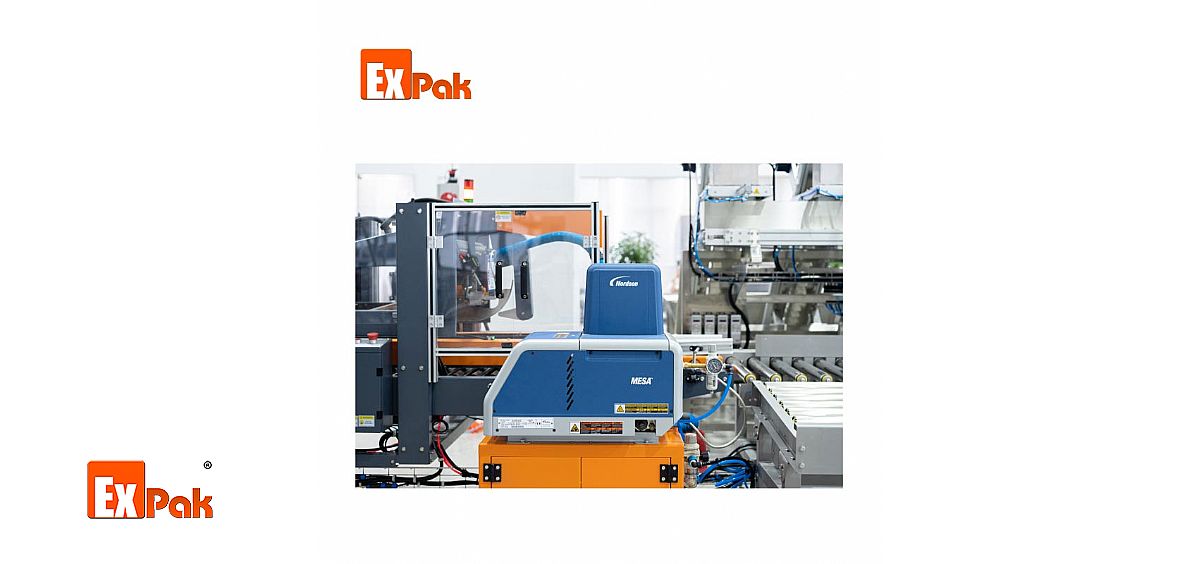

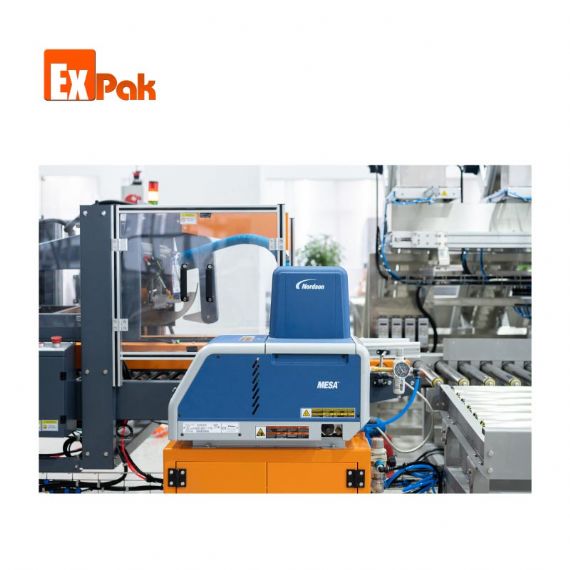

The final station is carton close and seal system, it is also designed for different sizes of carton, quick change to fit in every carton. Fold the sides and seal by tape system or hot melt glue. Of course we can add date printer when carton is discharged.
Technical parameters
| Item |
Description |
| Suitable Product(this is reference data) |
| Litho Type |
Length |
Width |
Height |
| 36ct |
7.625 |
6.187 |
6.25 |
| 42ct |
9.125 |
7.1875 |
6 |
| 80ct |
12 |
10 |
7.125 |
| 100ct |
12 |
10 |
7.13 |
| 120ct |
12 |
10 |
8 |
|
| Seal/CLOSE type |
Tape seal or hot melt glue seal |
| Capacity |
8-12 cartons per min (480-720 ctns/hour) |
| Tape size |
W:48mm/60mm. L 1000 Yards (914.4m approx.) |
| Case size(L*W*H) |
190-470*150-350*120-400(mm) |
|
Standard Power |
3 phase 220V @ 50/60hz – 35kw
Upper limited voltage is 264V |
| Installed size (LxWxH) |
11000*4129*1719(mm) as fyi |
| Air requirement/consumption |
1500L per minute @0.6-0.8MPA |
