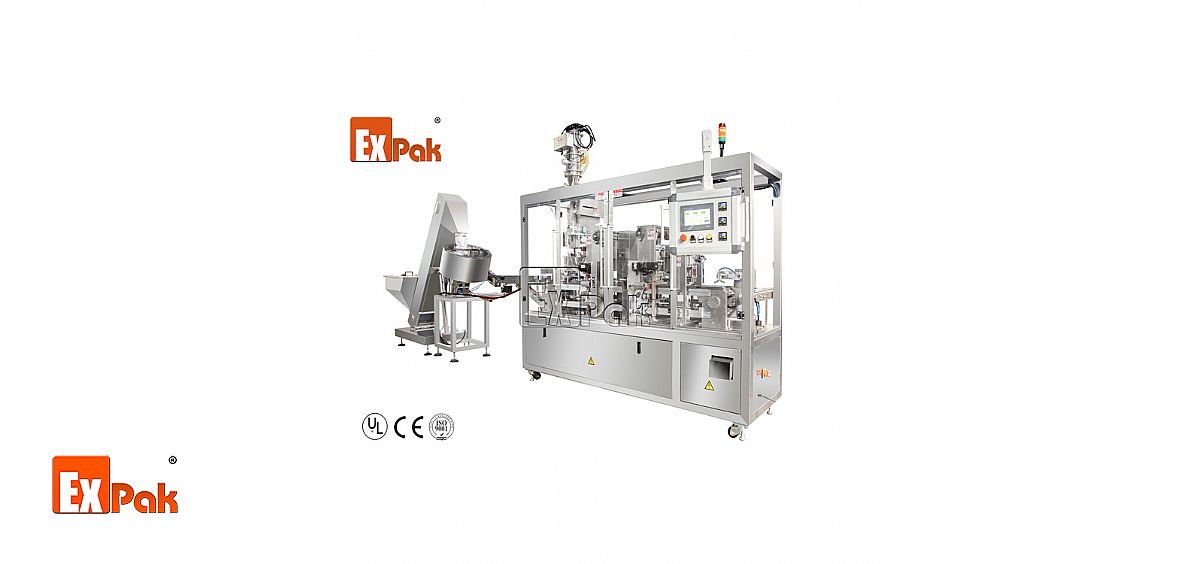

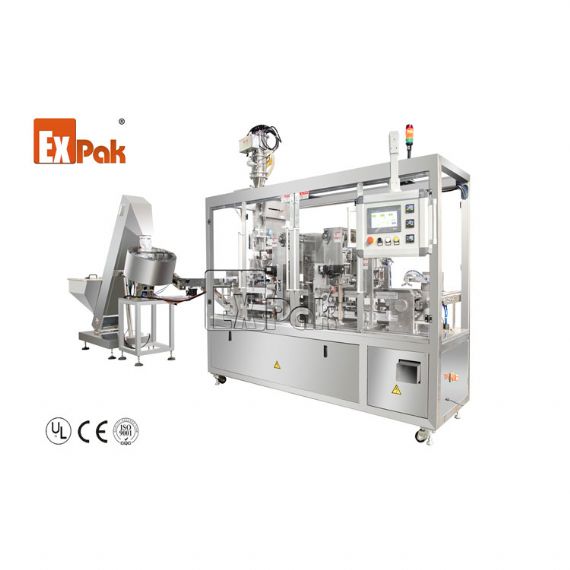

Introduction:
CP3001D is in the CP30 series, the same premium-quality machine. The machine can be used to produce Dolce gusto coffee capsules, cut the film twice, and heat seal twice.
Adopt advanced European accessories and a PLC touchscreen control system.
Servo drives so that the filling accuracy is very accurate.
Screw metering, pneumatic propulsion machine working.
It is an ideal machine for entrance production that:
Small in size, 2000x700x2600mm (height including air conveyor).
Reliable working to continually packing 1200-1500pcs per hour.
Ideal price to lower the budget.
Its packed capsules are as good as other CP30 machines, with excellent accuracy and nice sealing.
Technical parameters:
| Model |
CP3001D |
| Suitable Product |
Coffee, chocolate, tea, etc.
|
| Suitable capsule |
Dolce Gusto compatible capsule |
| Suitable sealing |
Roll type foil |
| Capacity speed/hour |
15-20 pcs per minute |
| Filling range |
3-20g (adjustable by customer) |
| Accuracy |
±0.1 grams |
| Standard Power |
3 phase 220V @ 50/60hz - 3kw |
| Installed size (LxWxH) |
2050mm*670mm*2600mm(height 1800mm without air conveyor loader) |
| Air requirement |
≥0.8Mpa／300L per minute |
| Required Temp |
5-35°C |
| Required Humidity |
≤85％ |
Characteristics:
1. Filling machine for packing DG, in line with European standards, accessories mostly use Omron, Schneider, and other brand accessories.
2. The frame is made of stainless steel 304 and a plexiglass door, which meets food production needs. Long service life.
3. Detection system: no cup, no filling, no cup, no heat seal, automatic reject unqualified products, foreign body alarm.
4. Servo screw filling ensures that the accuracy ranges between ±0.05 and 0.15.
5. PLC touchscreen control, easy to operate, adjustable filling grams, and other basic settings
Working process:
1. Vibrator drum sort out Dolce gusto cup.
2. Automatically input capsule cup.
3. Detect the empty cup (start nitrogen flushing at this station).
4. Servo motor filling ground coffee.
5. Clean the edge of the cup powder and press the powder.
6. Cut perforated film.
7. Cut the top film.
8. Heat-sealed twice to ensure that the cup is well sealed.
9. The finished cup grasped by the manipulator
Load Dolce Gusto empty capsules, then the sensor confirms

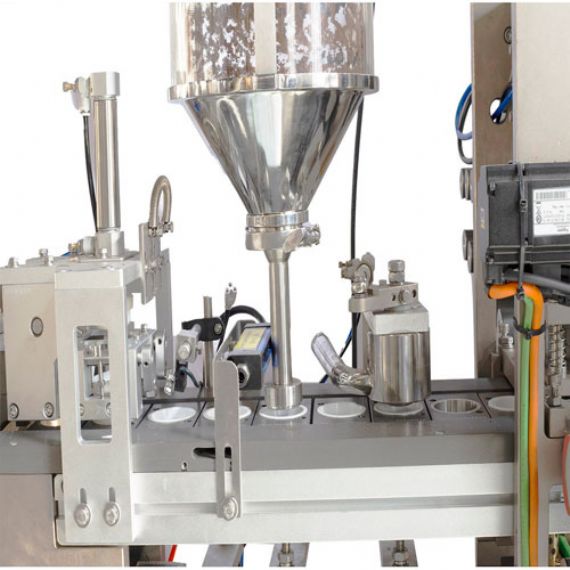

Filler station (one-way vertical direct auger fill)
#1 filler is strong press AS forced filling to fill enough grams as tamp fill
#2 then the cleaning device will air suck the extra coffee as a cleaning function (the transparent pipes will deliver the extra coffee into a bin))

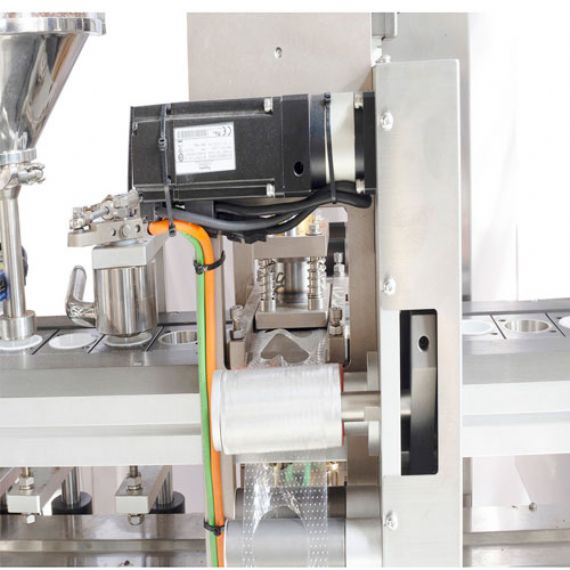

Roll aluminum foil place station and the first time cut foil and heat seal

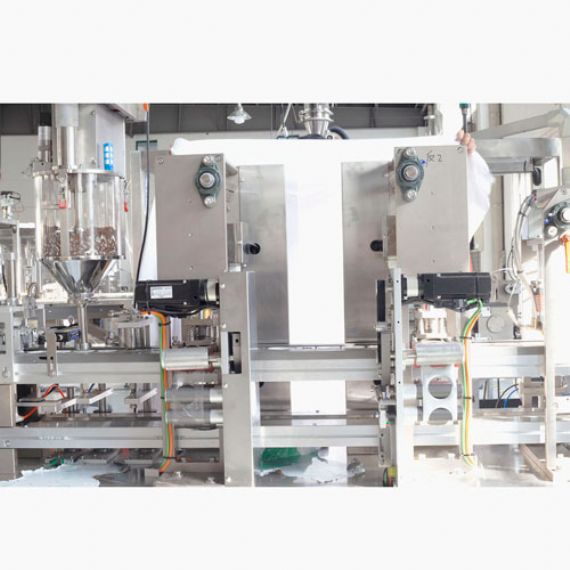

The second time cut the roll foil and heat seal.
#1 sensor confirms foil is placed then #2 Sealer station seal the capsule

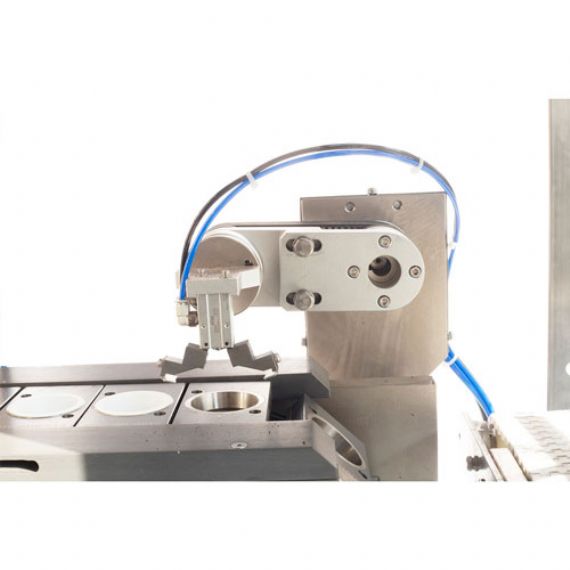

Automatic take-out of the finished capsules
