Ref: CP4501LD

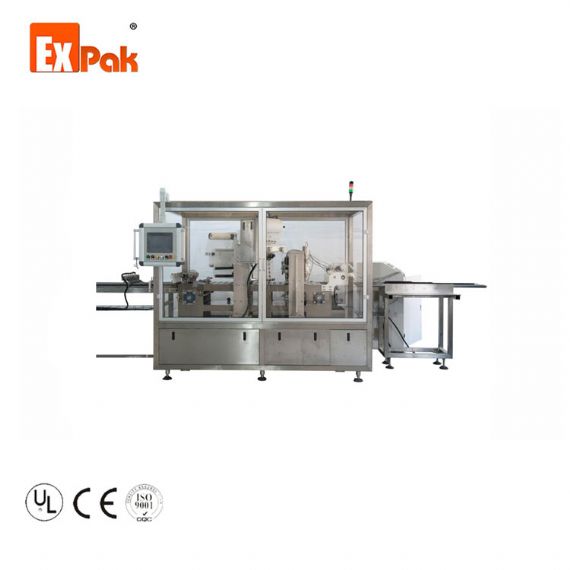

The frame of the whole machine is made of 304 stainless steel with a plexiglass door.
In order to protect the safety of workers, you could set it to stop production when the door is opened (Turn it off if you don't need it). Because there are two layers of film inside the Dolce Gusto capsule, the perforated film and the top plastic film, the machine also has two film-cutting stations. Therefore, the Dolce gusto filling machine is longer than the ordinary machine.

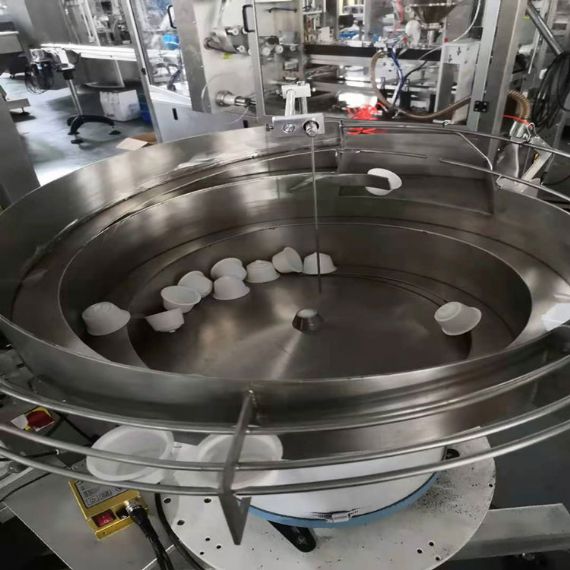

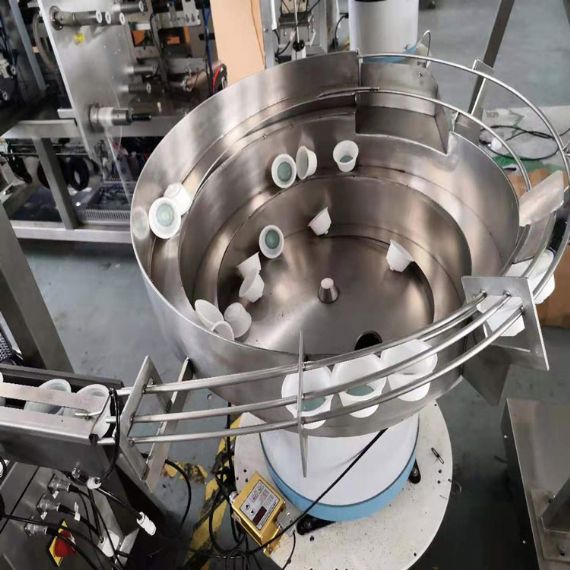

Since Dolce gusto is a hard-to-stack capsule, we provide you with an additional cup management system, a vibrator drum. It can conveyor the Dolce Gusto capsule to the filling machine perfectly.
A standard machine realizes the production from A to Z. Included no cup no filling, foreign body detection alarm, emergency braking, and nitrogen flushing system.
The linear structure can be well achieved to add additional stations, such as adding an essence pump, UV germicidal lamp, and reject unqualified.
It can not only fill ground coffee but also can fill cocoa, tea, matcha powder, and so on.
This type of machine occupies a small area, and the intelligent PLC controller makes your production easier.
Wholesale Enquiry

More Details

Introduction:

CP4501LD The extended linear filling and sealing machine allows you to increase the stations you want. Vibrator drum to realize cup management fully automatic. After sealing, you could connect the bag packaging machine or the box packing machine to achieve full automation of production. The screw feeder preserves the original aroma of coffee very well.

Main Features:

Stainless steel makes the frame stronger.

Electrical components use Schneider, Omron, AirTAC, and other world-famous brands.

Premium options such as vibrator drum, auger feeder, UV lamp, flavor pump, check weigher, air compressor, nitrogen generator, remote controller, the flip flop for the bulk pack, automatically count 48ct, 96ct...

Standard machine includes, a vacuum feeder, servo motor filling, vertical loading, empty capsule check, anti-static, nitrogen plate, press powder and clean the edge, cut roll film(or place lid), heat seal, the manipulator grabs out the cup and the slide.

Ready to connect with the next packing system such as box packing machine and bag packing machine.

Main Function:

1. PLC touchscreen control system, real-time monitoring, easy to operate.

2. Depending on the type of cup, you can choose to drop the cup vertically, horizontally, or vibrate.

3. Vacuum feeder and servo-driven screw filling.

4. Anti-static.

5. Nitrogen flushing.

6. Press the powder and clean the edge.

7. Cut the film and seal.

8. Out of the cup

Technical parameters:

Model CP4501LD
Suitable for Dolce Gusto
Changing molds Nespresso, Kcup and Lavazza
Notice： One machine is made for one capsule, if want two capsules need to confirm with our technician
Capacity speed per minute 30-50 cups/min
Filling type Serve motor-driven auger filler
Filling accuracy ±0.05-0.15g
Sealing type Pneumatically driven heat and seal, Omron precise temperature controller to adjust
Voltage 220v/380V 50/60hz—1PHASE (by the customer)
Dimension (Vertical load) 2335mmX762mX2630mm
Weight 0.5 m3 per minute @ ≥ 0.6Mpa
Certification CE, ISO Compliant
