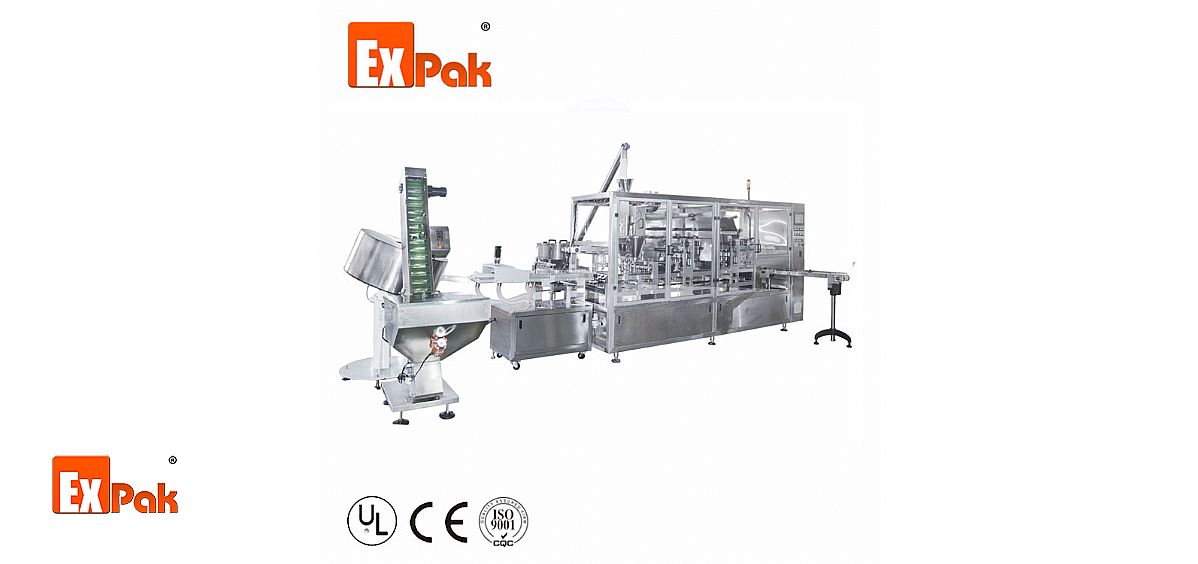

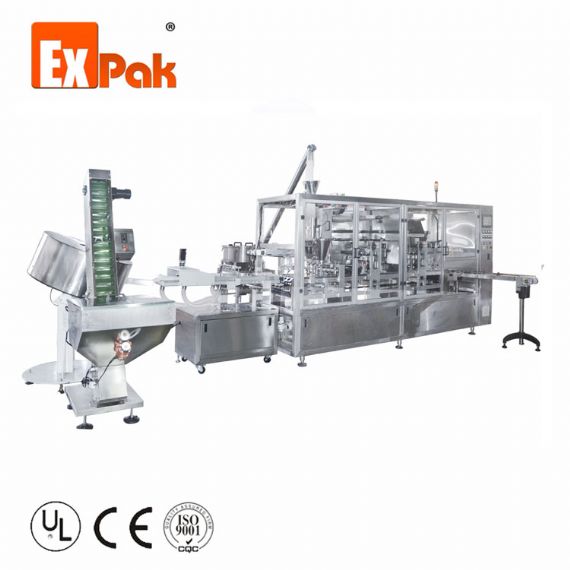

Filling Sealing Machine Making Dolce Gusto

Introduction:

Our CP02 models are designed and manufactured to fit Dolce Gusto-type coffee packing, upgraded speed of over 50 cycles per minute. Suitable for large-scale production.

Characteristics
The machine framework material is thicker and more durable(SS304).

Components are top brand name use imported.

Higher speed of 50 cycles per minute and all complete functions

Premium options such as a checker weigher to check every capsule's weight.

Ready to connect with the next packing system, such as:

Paper box packing machine(also manufactured by us), plastic bag packing, laser/ink date lot printer, etc., as well as auger conveyor, internet remote control assistance, etc.

Project Constitution:
Vertical loading cup structure(spare space)(invent patent)

Big-capacity vacuum conveyor

Servo control auger filling device

Automatic filling and sealing machine

Cutting twice roll film and sealing

Finished product conveys machine.

Nitrogen generator

Automatic count quantity and weighting device

Reject unqualified product

Technical parameters:

Model	CP02DG /CP04DG
Suitable for	Dolce Gusto compatible (PP plastic)
Notice	One machine is made for one capsule. If you want two capsules to need to confirm with our technician
Capacity speed per minute	CP02DG: 70~100pcs/min
	CP02DG: 70~100pcs/min
Filling type	Servo motor-driven auger filler.
Filling accuracy	±0.15g
Sealing type	Pneumatically driven heat and seal Omron precise temperature controller to adjust
Voltage	220v 50/60hz—3PHASE (by customer)
Dimension (4 LINES)	4500mmX950mX2680mm
Weight	1000kg
Compressed air consumption	0.6-0.8MPa
Certification	CE, ISO Compliant

Main working process steps:

Capsule sorting(optional)→capsule load to machine→check capsule ready→nitrogen flush→filling coffee→dust cleaning→first inside perforated film#1 (roll film cut and seal)→seal capsule→outside top-sealing roll film cut and seal→check capsule weight(optional)→grab out good capsules→next packagings like bag packing or paper box packing

Centrifugal drum for sorting cups		Conveying sorted cups on tunnels to load in

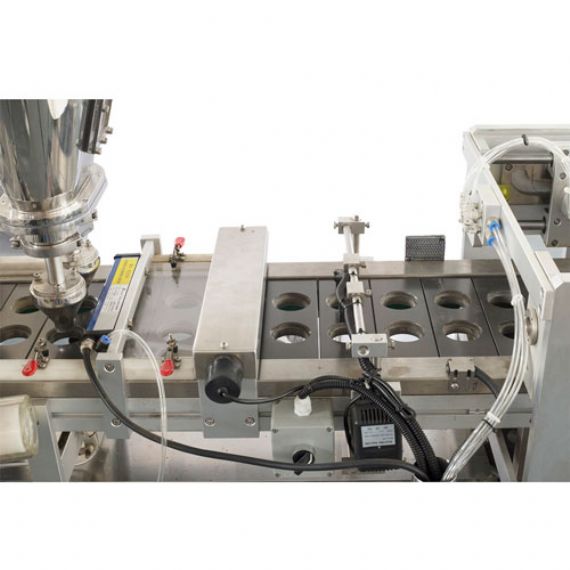

The sensor checks whether each capsule is ready or not. We have reached independent control, so for example, only lane no.2 no capsule, rest 1 and 3, and 4 normal productions, and only empty hole no.2 no filling.		Nitrogen flush protection and UV sterilize Nitrogen Plexi glass cover complete the production process from the capsule loaded until the capsule is sealed.

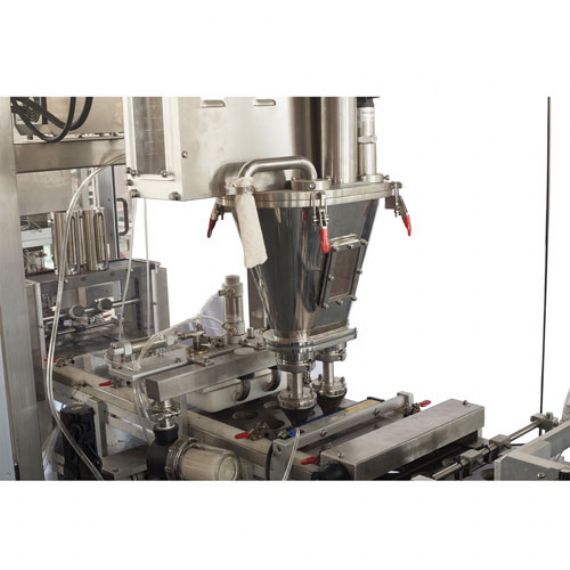

Compressed type filling, servo motor driven With watchable window and anti-static device.		Hopper is designed to pull out, easy to clean. With material level sensor to auto-refill coffee.

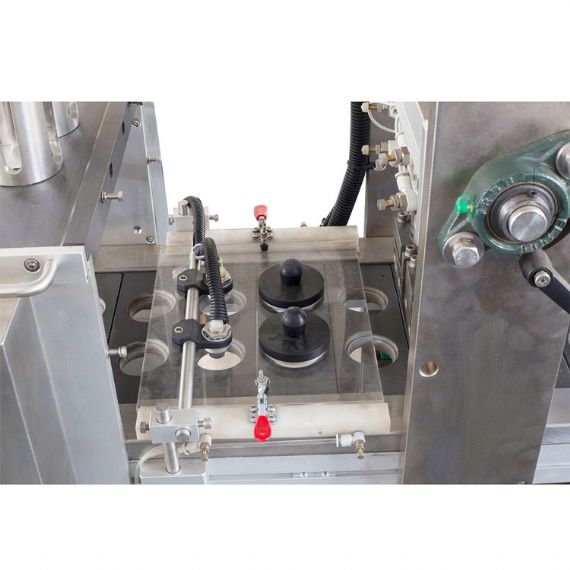

Professional coffee dust cleaning station to clean the capsule and guarantee 100% sealing(Airbest filter)		The first sealer system, #1 perforated film, needed ground coffee
Second Sealer, roll film cut and seal the capsule top.		Secondary heat sealer to seal the filled capsules
Automatic grab out the well-finished capsules.		Touch screen panel easy to operate in English
