Brief introduction
Standard Stations:
Detailed info and features:
 |
 |
|
| Horizontal type tunnel for k cup loading (with cup reload sensor to remind need more cups) | Mechanical manipulator to grab cups and load cups into the machine slot holes ready |
|
 |
 |
|
| Update the loading system. The spiral falling cup is the way to drop the cup in the European machine, which improves the fluency of the device, reduces the probability of a stuck cup, and makes the machine run at high speed. |
The sensor checks whether each lane k cup is ready or not each lane works independently, for example, only lane no.2 no k cup, then rest 1 and 3, and 4 regular productions, and only empty hole no.2 no filling. |
|
 |
 |
|
| Professional coffee dust cleaning station to clean the capsule and guarantee 100% sealing (Airbest filter) |
Nitrogen flush protection and UV sterilized Nitrogen Plexi glass cover complete the production process from cup loaded until the k cups are sealed. |
|
 |
 |
|

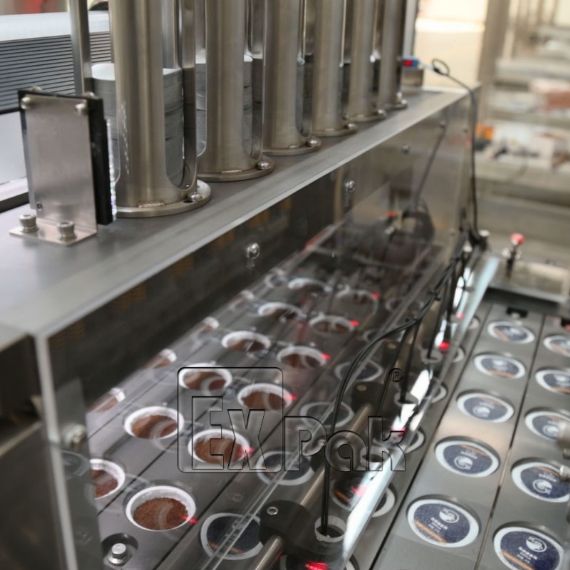

| Compressed type filling (for coffee) servo motor driven auger system With a watchable window and anti-static device | Quick change over filler heads for Soluble head centrifugal filler for instant powders like chocolate k cup production or tea. |
|
 |
 |
|
| Type1: Place precut foil 2.0 lid onto k cup this station total in nitrogen protection chamber |
Lid checking, no cup, no powder, no film, no sealing, automatic elimination of unqualified products |
|
 |
 |
|
| Seal twice to ensure the tightness |
All sealed k cups have a special curved ring |
Technical parameters:

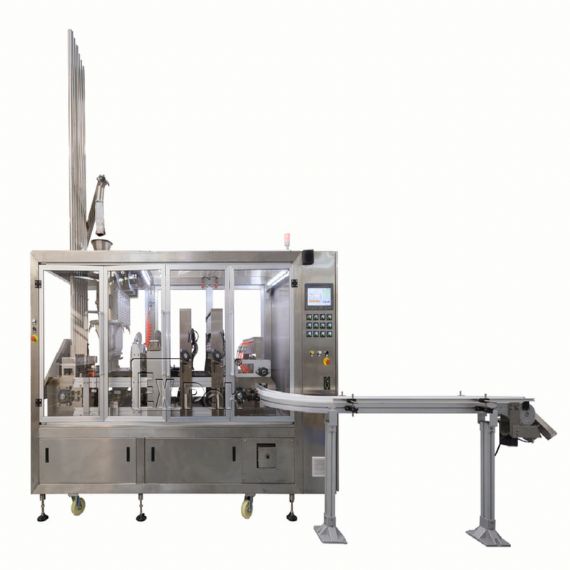

| Model | CP5006K |
| Suitable for | Keurig K-Cup compatible capsules |
| Speed | 270 cups/min |
| Filling type | The Servo motor is a driven auger filler |
| Filling accuracy | ±0.1g |
| Sealing type | Pneumatically driven heat and seal, Omron precise temperature controller |
| Voltage | 220v 50/60hz—3PHASE (by customer) |
| Dimension | 3500 mmX1050mX2062mm |
| Weight | 1250kg |
| Certification | CE, ISO Compliant |
| NOTICE | One machine is made for one capsule if more capsules need to be confirmed by us |
