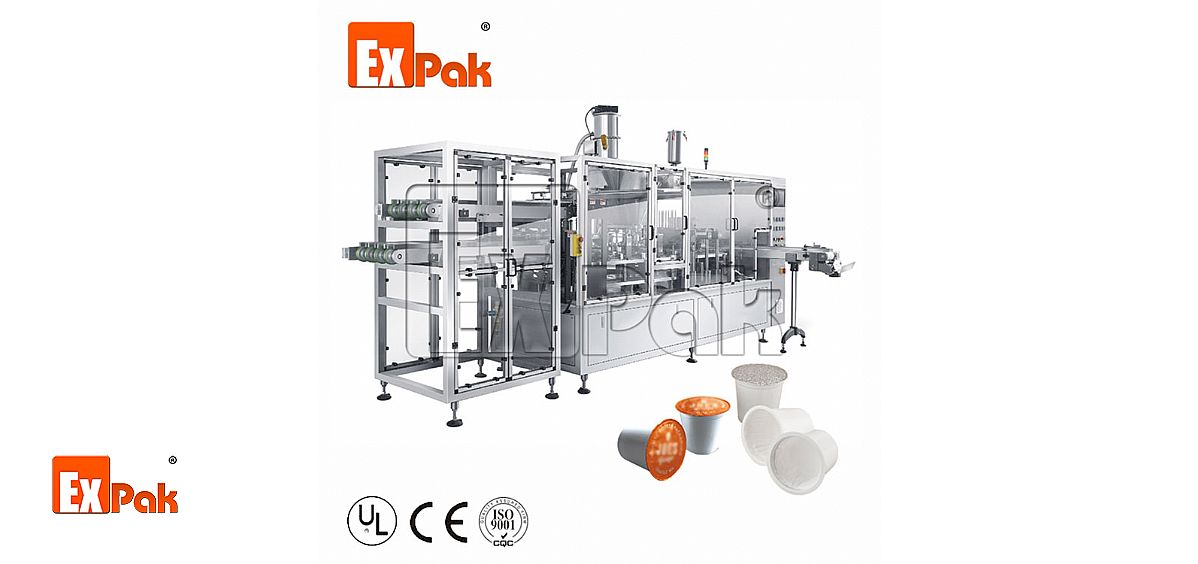

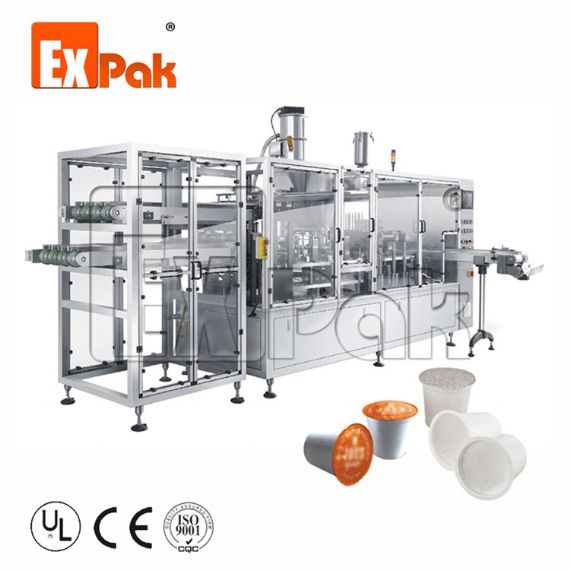

Linear 2 Lane K Cup Coffee Capsule Filling Machine

Introduction:

CP5002 and CP5004 series are our latest machines, suitable for medium-sized and large companies.

The machine can fill and grind coffee powder, instant powder, tea, matcha powder, and so on.

Filling with servo screws, the speed can reach 6000-12000 k cups per hour.

Optional two or four columns.

Upgraded nitrogen flushing system with less than 5% residual oxygen.

Standard function:

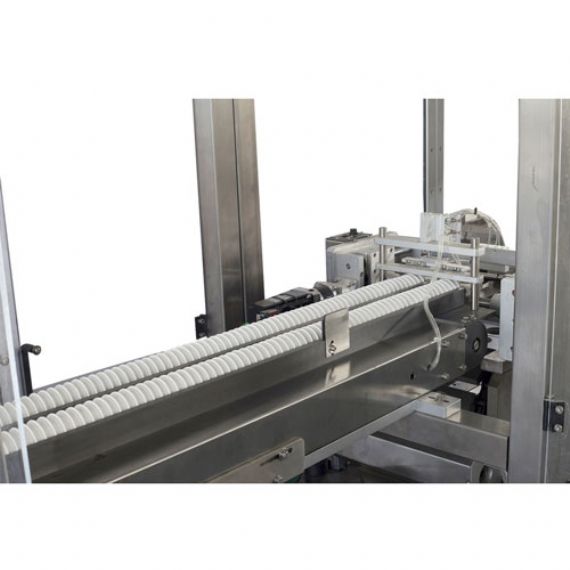

Cup Feeding
1. Automatic load cup

2. Loading device can be changed to other sizes to satisfy your different coffee capsules

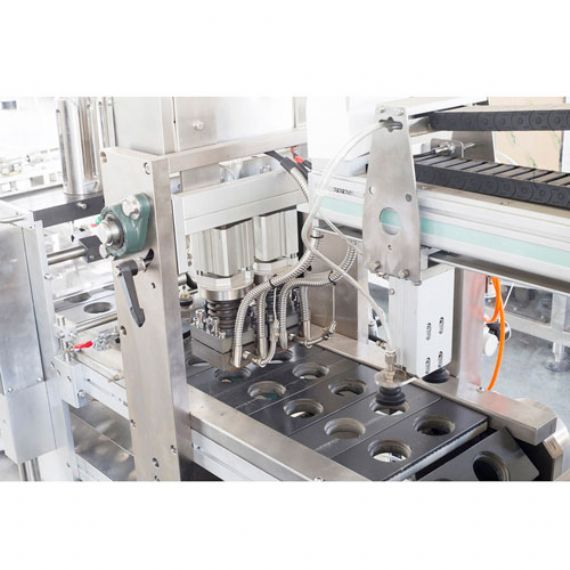

Coffee filling with nitrogen flushing
1. Automatically vacuum suck and convey coffee powder

2. Servo motor control auger filling

3. with the filling nitrogen system, the nitrogen flush process from empty capsules to the heat seal station

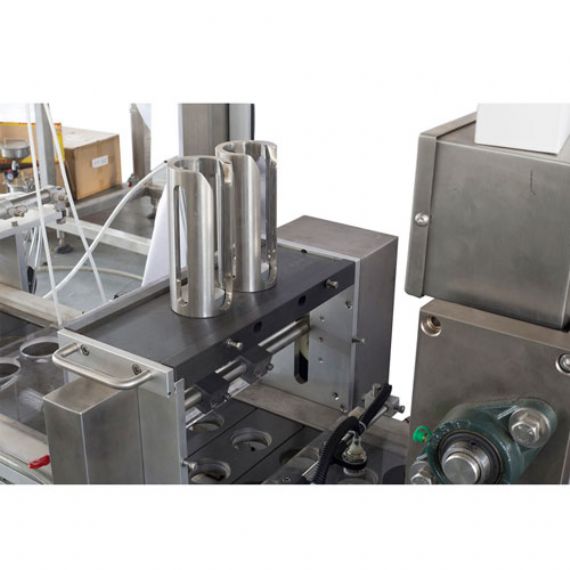

Capsule sealing station
1. Automatic suck and place lids

2. Omron brand automatically heat seal, line seal, and flat seal

3. Sealing material is copper, heats evenly, sealing effect is better

Coffee capsule output
1. automatically outputs the finished product.

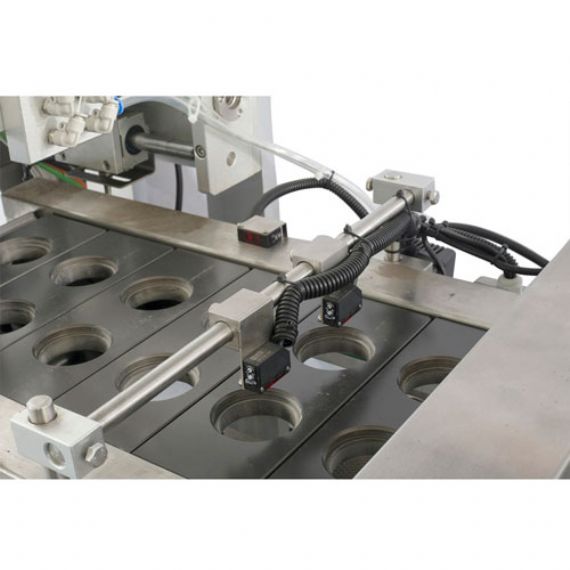

2. automatically reject unqualified on the conveyor belt, the sensor detects empty cups loading position, no cups, and alarm.

Main working process steps:

Empty K cup capsule load to machine (horizontal system or vertical system)→check K cup inside ready

→nitrogen flush→filling coffee→dust cleaning→liquid flavoring system to do flavored coffee(optional)

→place aluminum foil lid→seal capsule→check capsule weight(optional) →check sealing good or bad sealing

→grab out good K cup→ink jet printer(or laser lot printer optional)→connect to next packaging like 12/24ct paper box packing(manufactured by us)

Technical parameters:

Model	CP5002K /CP5004K
Suitable for	Keurig kcup compatible capsules
Notice	One machine is made for one capsule if more capsules need confirm by us
Capacity speed per minute	CP5002: 100pcs/min
	CP5004: 200pcs/min
Filling type	Serve motor-driven auger filler
Filling accuracy	±0.1g
Sealing type	Pneumatically driven heat and seal curve ring Omron precise temperature controller
Voltage	220v 50/60hz—3PHASE (by customer)
Dimension (Horizontal load)	4500mmX1050mX2062mm
Dimension (Vertical load)	3500mmX1050mX2062mm
Weight	1250kg
Compressed air consumption	0.5 m3 per minute @ ≥ 0.6Mpa
Certification	CE, FDA, CSA, ISO Compliant
