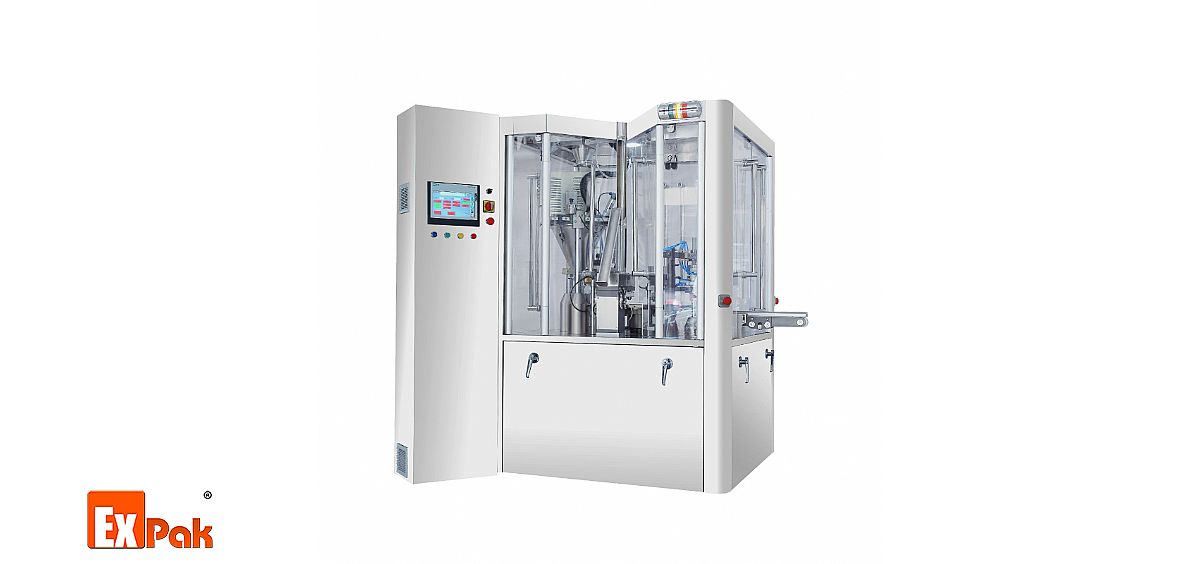

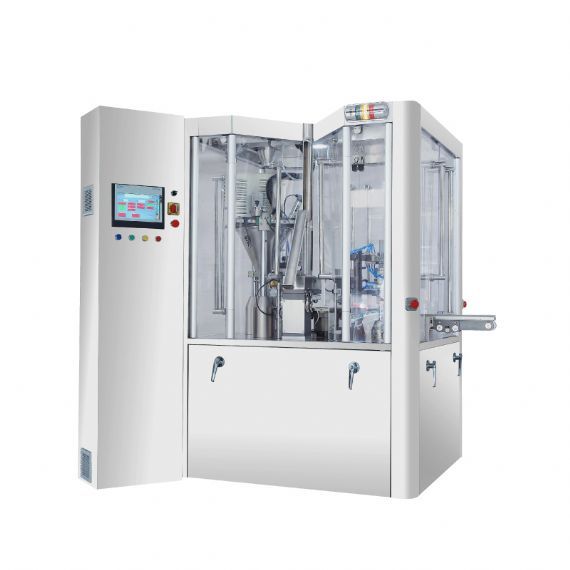

CR90 Rotary K cup filling and sealing machine

Ref: CR90

The CR90 rotary k-cup filling and sealing machine offers a speed of up to 90 cups per minute. It is the latest design, fully mechanized-driven; we use cams and rods to make each station's operation smoother, more precise, and more stable. There is a big advantage that this machine can easily replace Nespresso or other formats; no more adjustments or tests are required; it has a very friendly design, and even non-professional technicians can replace different formats. Nitrogen injection has been upgraded. Compared to other machines, this one includes a nitrogen environment at every step. Also, it strengthens the special nitrogen flushing before emptying the cup for sealing, ensuring the freshness and aroma of the coffee.
This machine has a remote control so that we can monitor the machine's status in real time.
If you have any related questions, feel free to contact us.

Wholesale Enquiry

More Details

Brief introduction:

High speed up to 90 cups/min as a newly medium-volume model.
Fully mechanically driven to guarantee stable operation.
Quick changeover for Nespresso without adjustments.

Standard stations

Vertical loader for empty kcups: This station applies servo system control to load empty cups by four specific rotating heads. When the four heads spin once at the same time, one cup will be loaded, and there will be no accidents in loading more than one cup. A very precise servo motor controls the matching of angle and speed. And there is a suction cup below the plate tray. When the cup is loaded, the suction cup goes up to receive and hold it into the tray. And the suction cup speed couldn’t change due to this was mechanized by the cam and rod to drive. Some sensors detect cups.

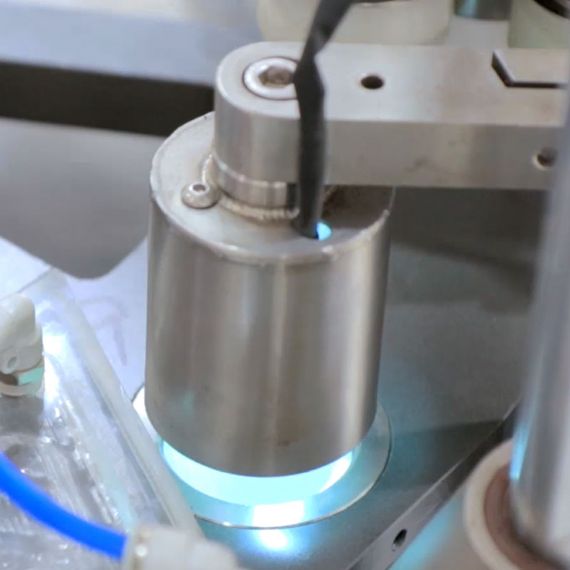

The UV lamp is sterilized to keep the cup clean and safe before dosing the coffee.

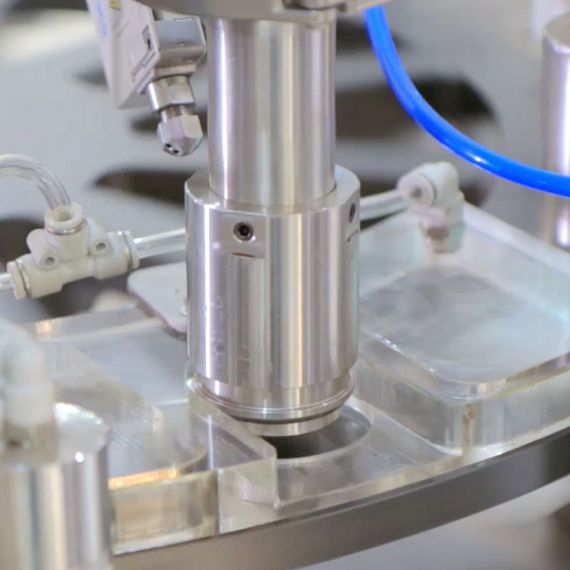

Auger Filler and Anti-Static device: It adopts servo motor control and auger dose.
The Servo motor controls the speed of spin of the drill and self-adjustment after feedback to ensure accuracy. The high-precision processing of the drill ensures the stability and accuracy of the filling. The anti-Static device prevents splash of coffee filled due to static electricity between coffee granules and keeps the environment clean.
Rim Clean to collect dust.

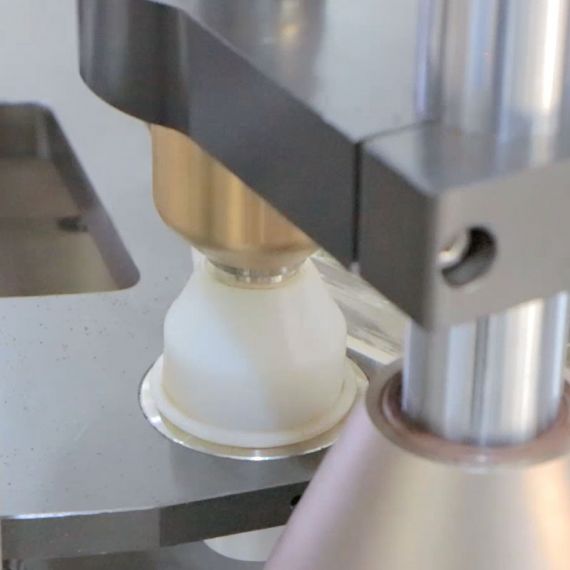

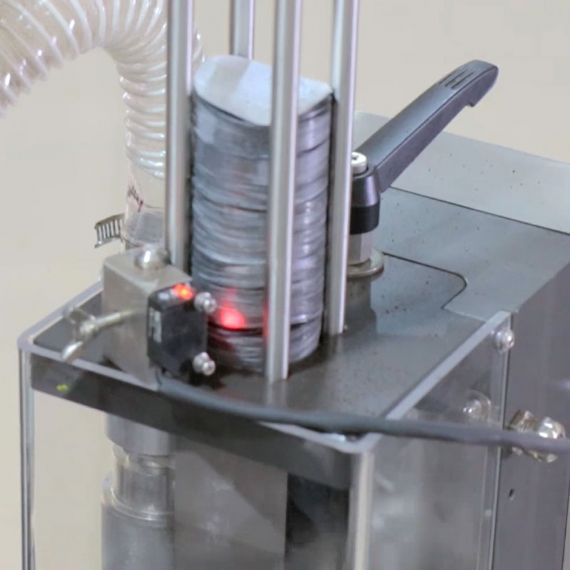

Foil lid Placement: A suction cup is up and down to grab the lid and place the lid on the cup. The foil detector will tell you when the lid is running out.
Foil Lid Detector before heat seal.

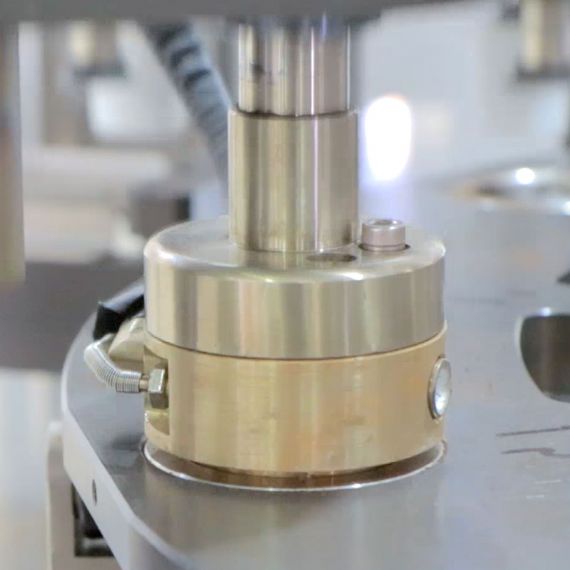

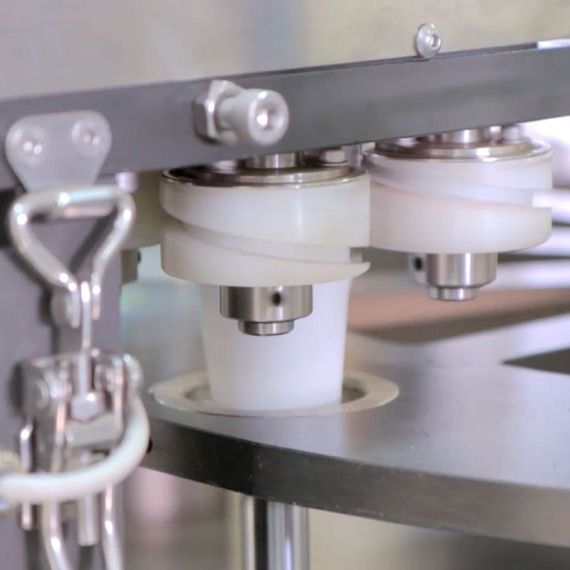

Twice Heat Seal: Heat Sealer Head is made of beryllium copper material; the effect will be better, and the service life will be longer. Twice sealer heads guarantee better sealing.
Outfeed: The rotary suction cup to make the finished capsule better for packaging one by one comes out and faces up on the conveyor belt.

Optional Functions:

Screw the Lifter Conveyor to auto-reload coffee into the machine hopper.
Flavor Liquid Pumping System to dose (0.01-0.05ml) liquid to kcup after filling the coffee.
Stand-alone Check Weigher to pass good capsules(within a weight range that the operator set) and refuse bad capsules(less or overweight range) to the trash bin of the checker machine.
Inkjet Printer to print date and batch
Cartoner/Bagger as secondary packaging machine to connect with

Technical parameters:

Model	CR90K
Suitable for	K Cup
Capacity	Up to 90 cups/min
Filling type	Auger Filler by servo motor control
Filling accuracy	±0.2g
Sealing type	Twice Heat Seal
Voltage	220V or 380V 50/60hz—1 or 3 Phase 3KW
Dimension	172721072640 (mm)
Net/Gross Weight	2200 KG/2400 KG
Air Consumption	0.1M3 per minute @ ≥ 0.6Mpa

Contact us for more information

Suzhou Expak Packaging Co., Ltd

Address: West Tower, #400 Suzhou Avenue East,
Suzhou Avenue, Suzhou Industrial Park,
Suzhou City,Jiangsu Province,
China

Tel: ＋86 13348026518

E-mail: info@expakchina.com

txt_CONTACTANOS_CLI_NOM_label NOT defined in Message file

txt_CONTACTANOS_CLI_EMAIL_label NOT defined in Message file

txt_CONTACTANOS_CLI_PAI_label NOT defined in Message file

txt_CONTACTANOS_CLI_TEL_label NOT defined in Message file

txt_CONTACTANOS_CLI_DES_label NOT defined in Message file

Thank you! Your message has been sent.

Unable to send your message. Please fix errors then try again.

Enter Verification Code:*

I accept the Expakchina Privacy Policy

SEND ENQUIRY

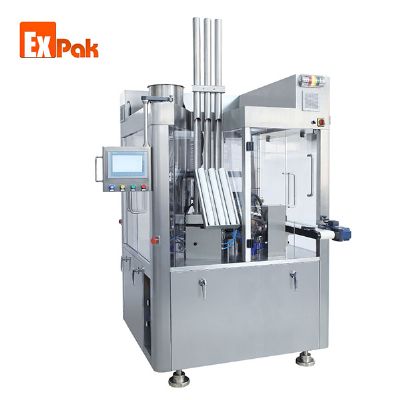

High Speed Rotary Three-lane K-cup...

This is CRM70 high-speed rotary three-lane machine for filling and sealing K Cup. Speed is up to 210 cups per min.. It is the latest design as fully mechanized driven which is no cylinder; we use the mechanical way of cams and rods to make the...

Learn more...

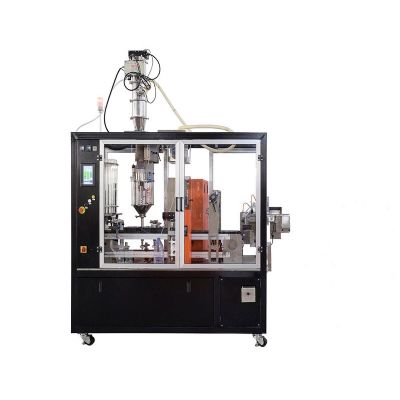

K-Cup Filling Machine Making K-Cups

This is a fully customizable machine on which you can either use self-designed capsules or package standard K-Cup capsules. Depending on the capsule size you choose, we can change the adjustment station to achieve perfect packaging and sealing.. This...

Learn more...

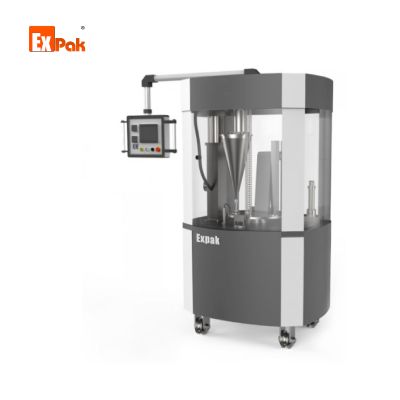

Rotary Type K-Cup Packing Machine

The K-cup rotary machine is one of the most popular products for small and medium-sized enterprises and start-up companies in North America. It not only meets the daily production and quality requirements of our customers but its small footprint...

Learn more...

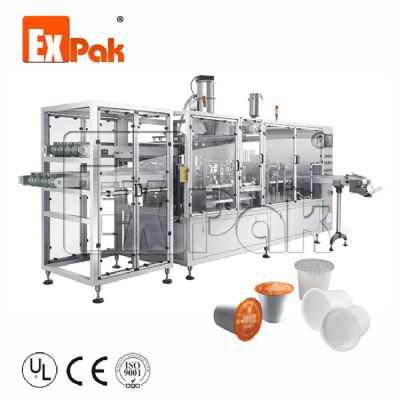

Linear 2 Lane K Cup Coffee Capsule...

This is the ideal machine for medium output as with its two-lane configuration you can reach an output of 80-120 cups per minute. The machine frame is made of 304 stainless steel and is suitable for filling and sealing Nespresso, K-Cup, dolce gusto,...

Learn more...

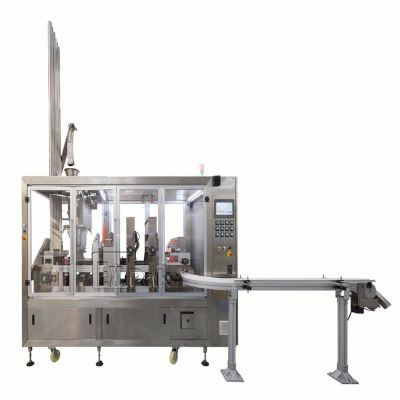

Big type six lane K-Cup Filling Sealing...
